Phillips 1036F H-3 Digital Tuner
BeagleScanSpec continued: The Phillips 1236F H-3 is a excellent choice for a USA standards tuner. These are not expensive and are easy to work with. I pulled this one from a older ATI PCI video capture card.

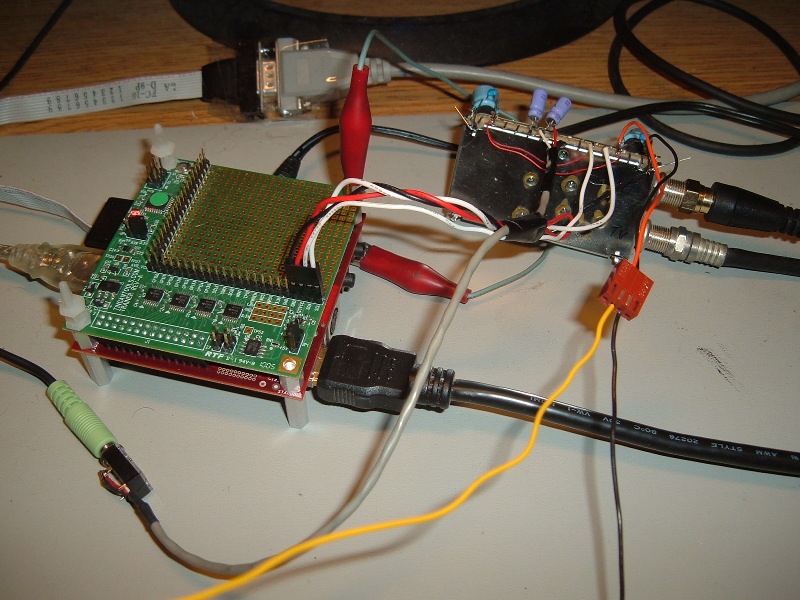

Image of Temic 1236F H-3 tuner being developed around.

The Phillips 1036F H-3 is connected to the TinCanTools Trainer Board's I2c at 5vDC level.

Tuner specifications:

FM band 76.00 to 108.00 MHz, Mono / Stereo

Low band 55.25 to 160.00 MHz

Mid band 160.00 to 442.00 MHz

High band 442.00 to 801.25 MHz
