Images and information about the HP W2207h LCD monitor.
This monitor appears to be well built.

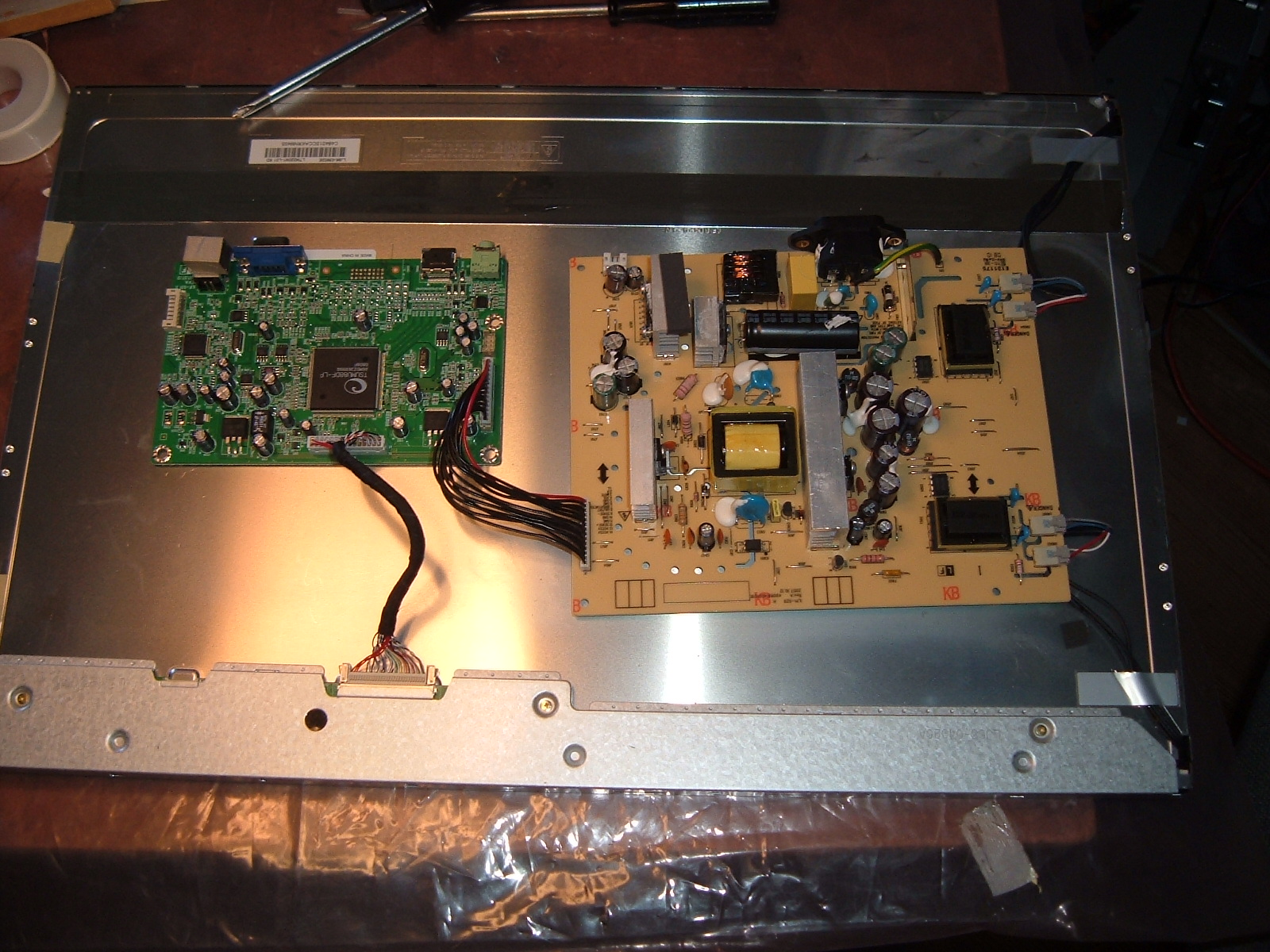

Main logic video board on left, powersupply and backlight board on right..

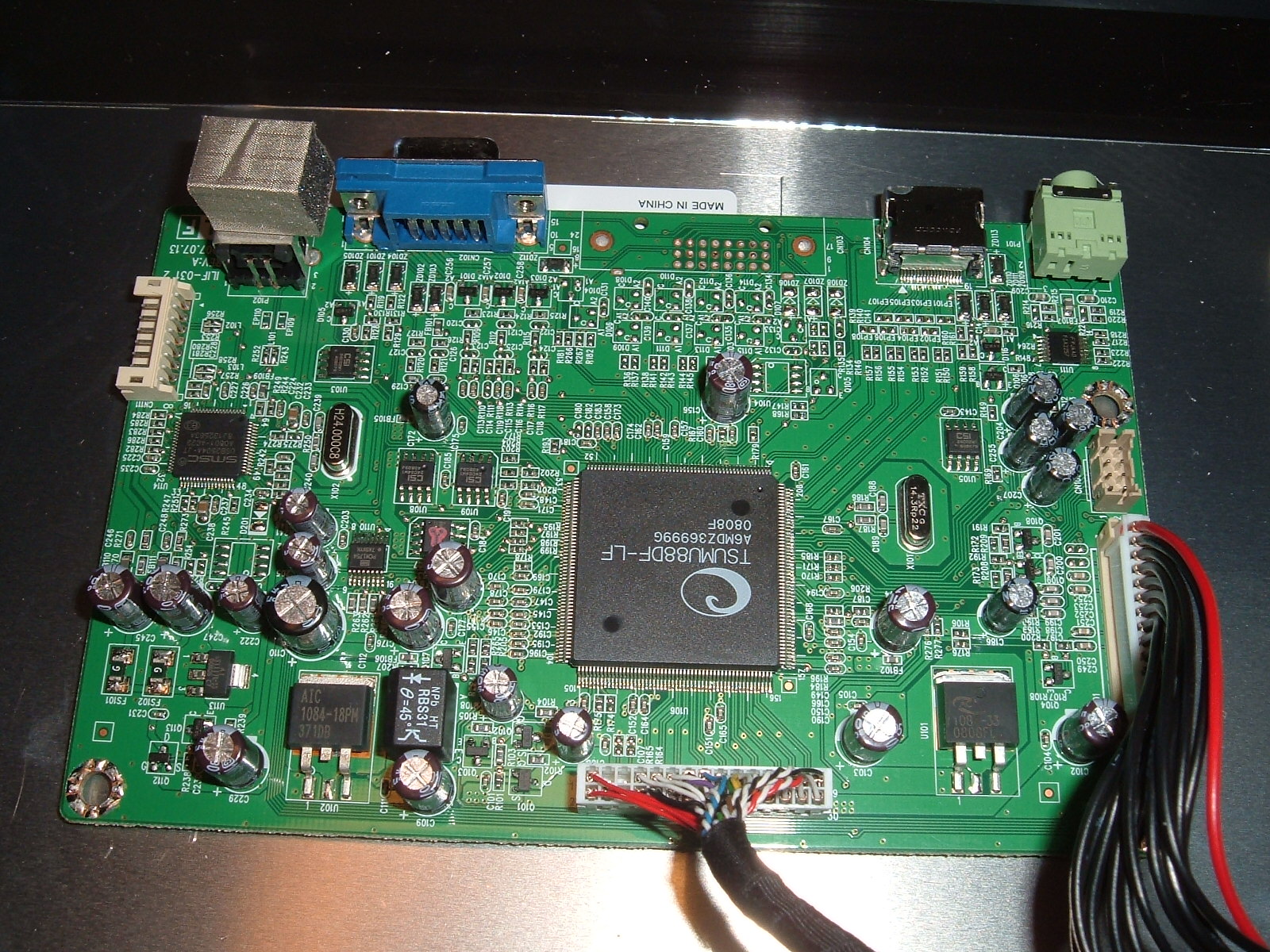

Main logic, video board. This board also has a 8250 flavor controller.

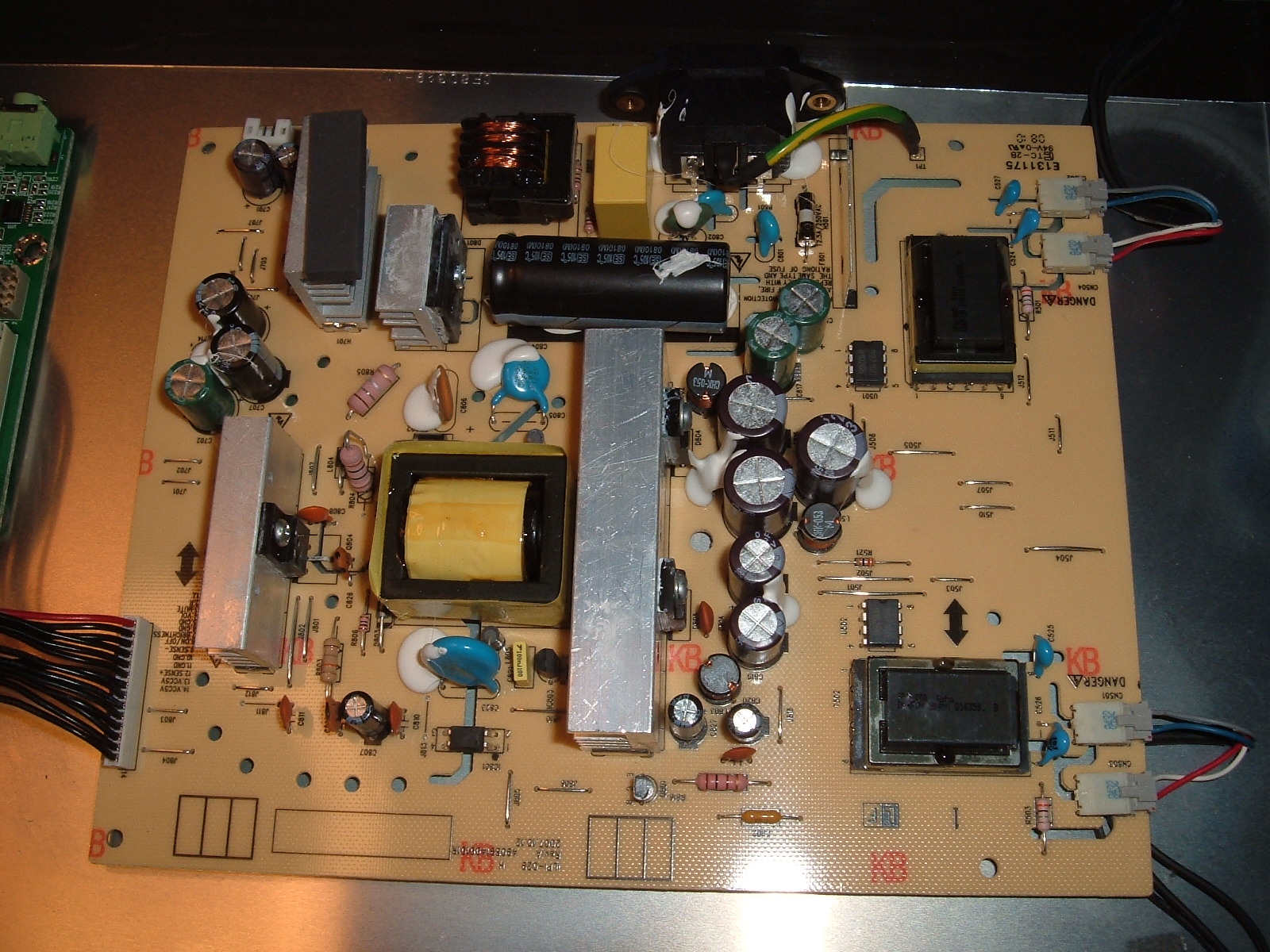

Powersupply and backlight board.

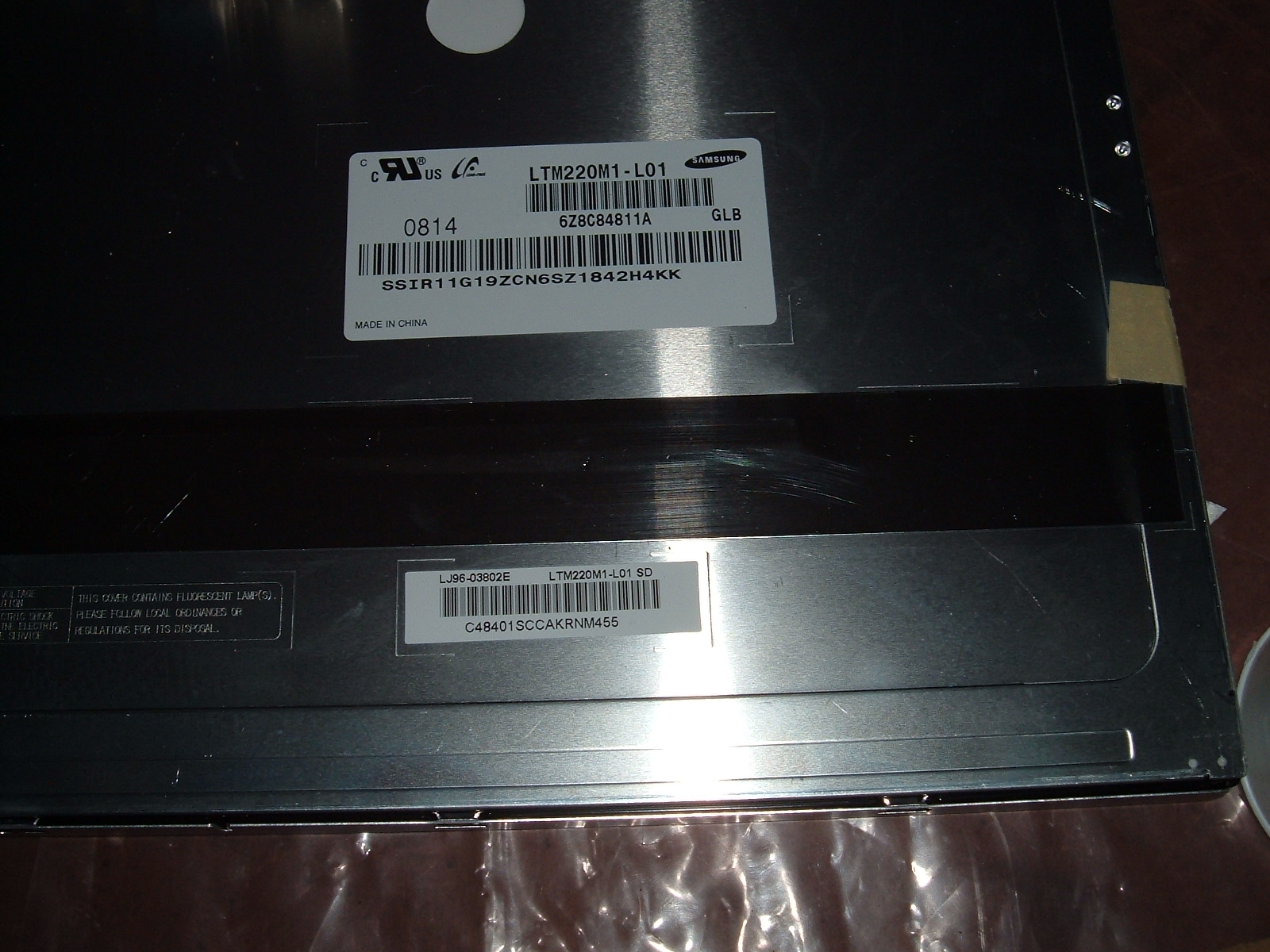

Rear of LCD showing part numbers etc.
I overlooked taking images of the actual cause of failure. It
turns out one ccfl out of four went bad. High voltage burned
through the insulation at one end of that particular bulb and
thus caused a power supply shut down after a few seconds.
I chose to order 4 new 2.4x480mm ccfl's, spare end caps, some
tiny spacer rings. ccflwarehouse.com provided a 4 lamp kit
and the individual parts I requested. Packaged well and arrived
in 5 business days.
Main logic video board on left, powersupply and backlight board on right..
Main logic, video board. This board also has a 8250 flavor controller.
Powersupply and backlight board.
Rear of LCD showing part numbers etc.
I overlooked taking images of the actual cause of failure. It
turns out one ccfl out of four went bad. High voltage burned
through the insulation at one end of that particular bulb and
thus caused a power supply shut down after a few seconds.
I chose to order 4 new 2.4x480mm ccfl's, spare end caps, some
tiny spacer rings. ccflwarehouse.com provided a 4 lamp kit
and the individual parts I requested. Packaged well and arrived
in 5 business days.

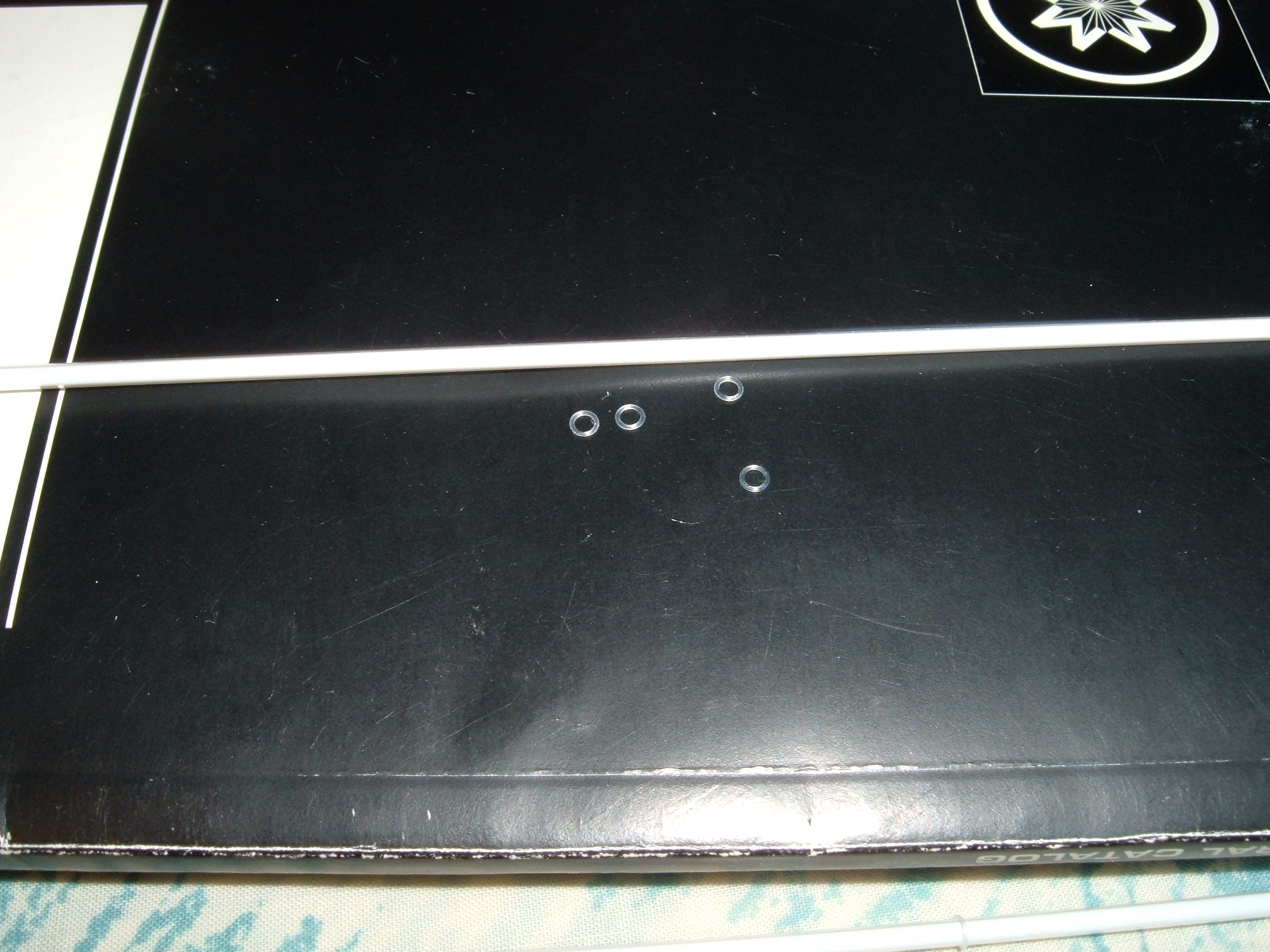

These are tiny nylon rings to be placed eaual distances along the tubes. Doing
so prevents glass against glass.

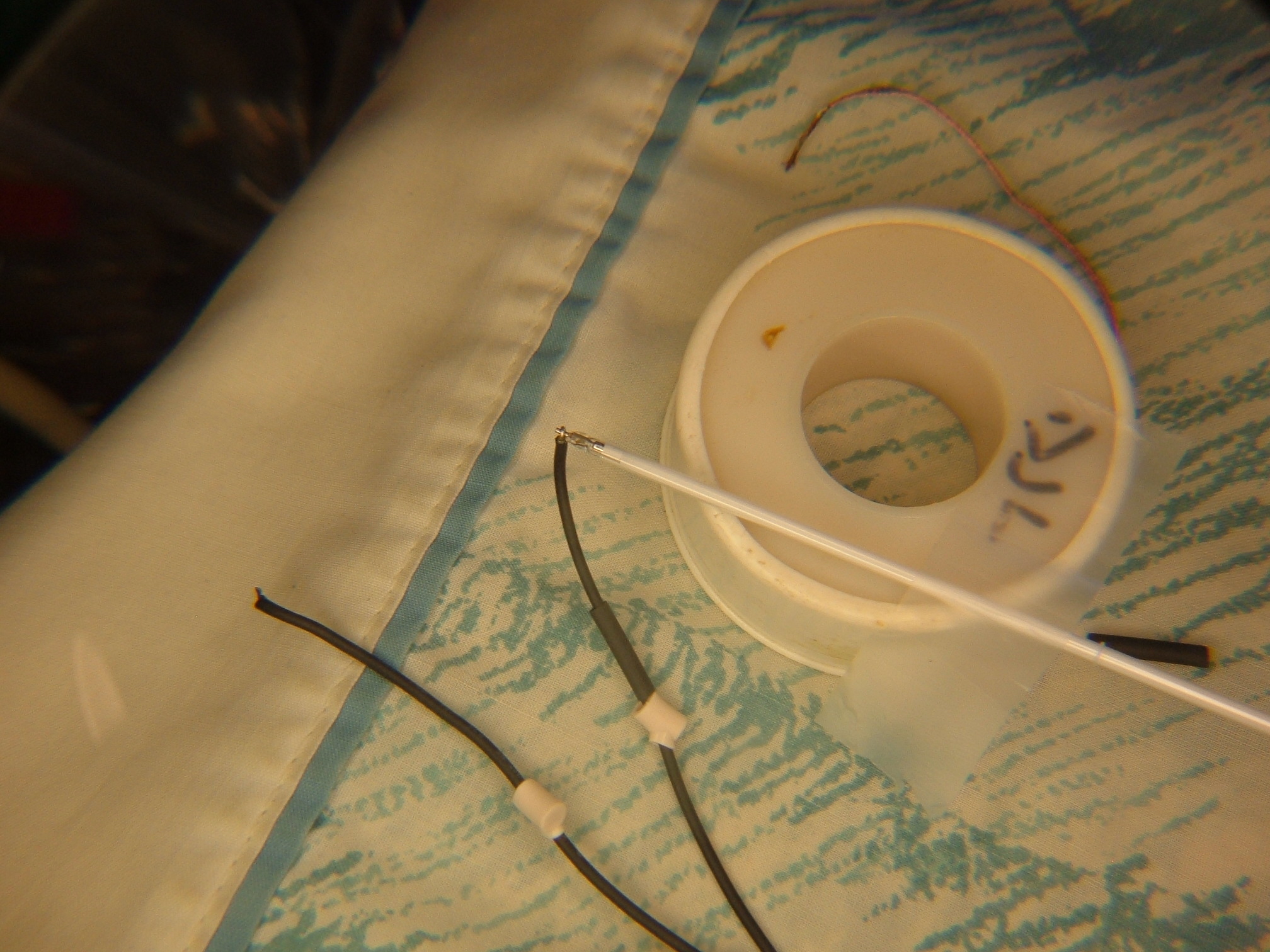

Carefully place insulators over existing wire, wrap small stripped end of wire around ccfl wire and solder a nice round bead of solder. High voltage wont arc as well from a rounded joint as it does from a point. Notice to the right of the scotch tape securing the bulb to something heavier, there is a nylon ring in view.

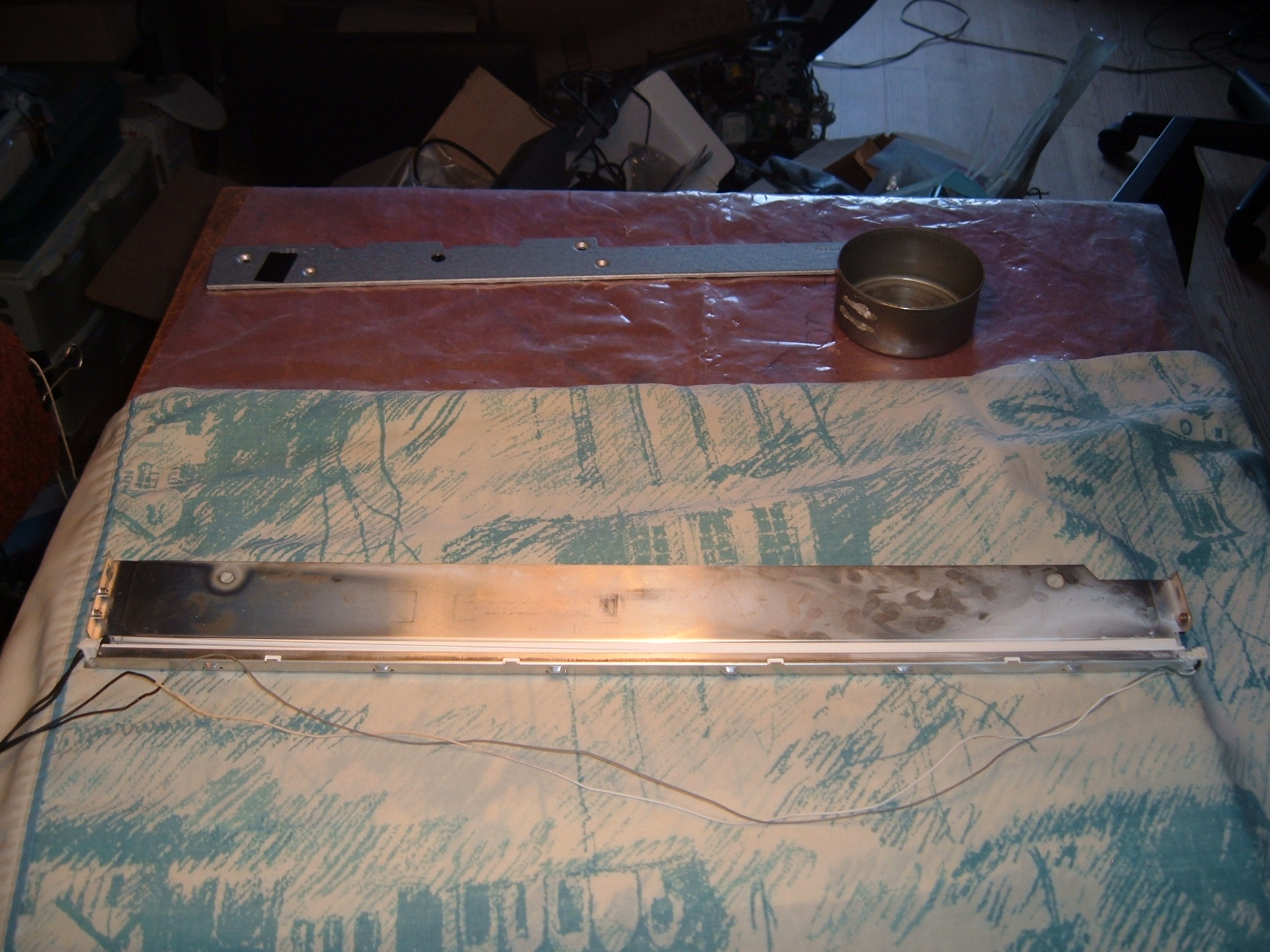

Both ccfl bulbs are inserted into their frame. This monitor has two pair of bulbs, one along the top and one on the bottom.
note: if you are into the monitor this far you may as well replace all the ccfl's. If you dont you might have some brighter than others and failure for the older bulbs may come soon.

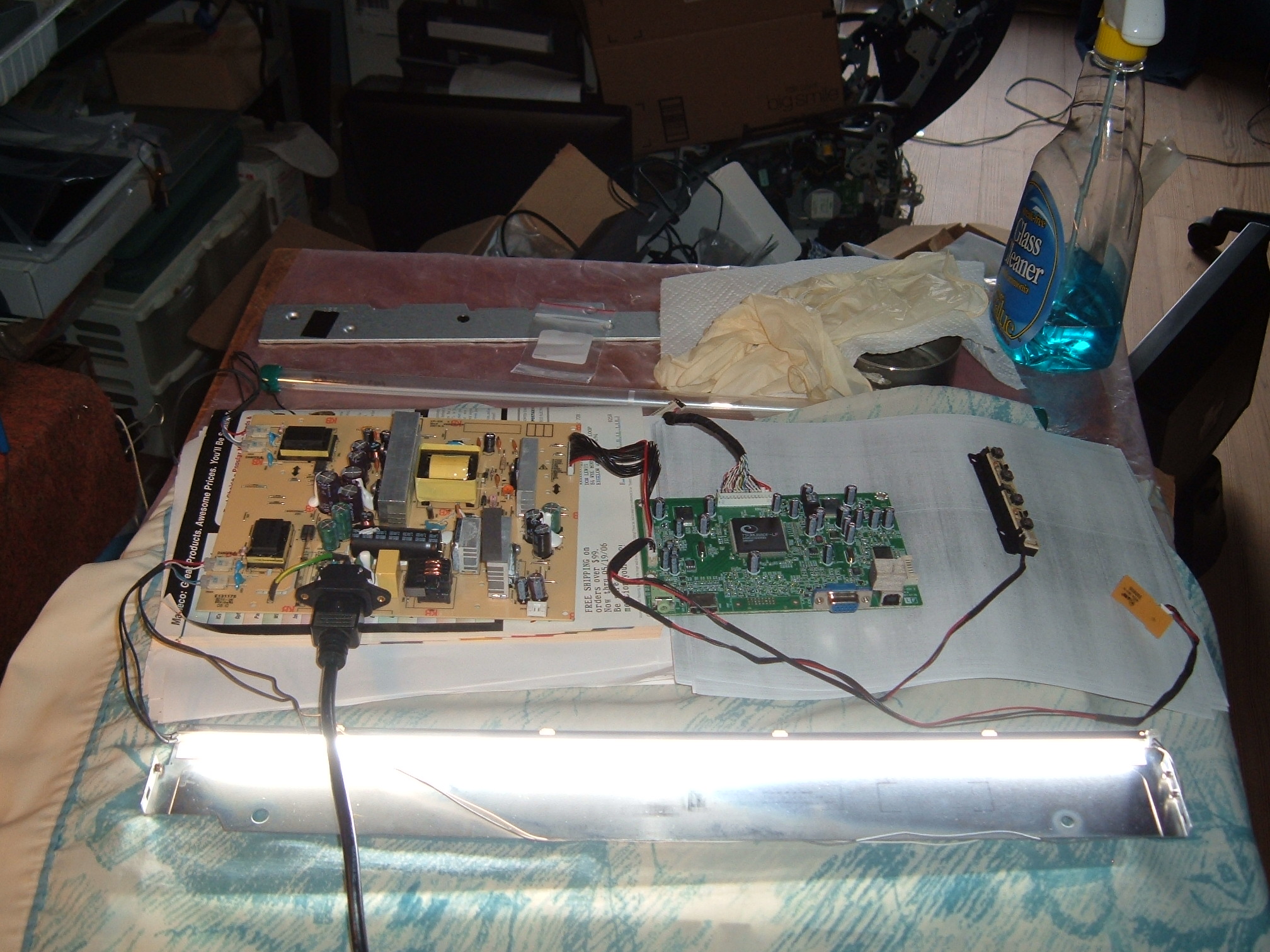

A bulb set being tested after mounting in frame

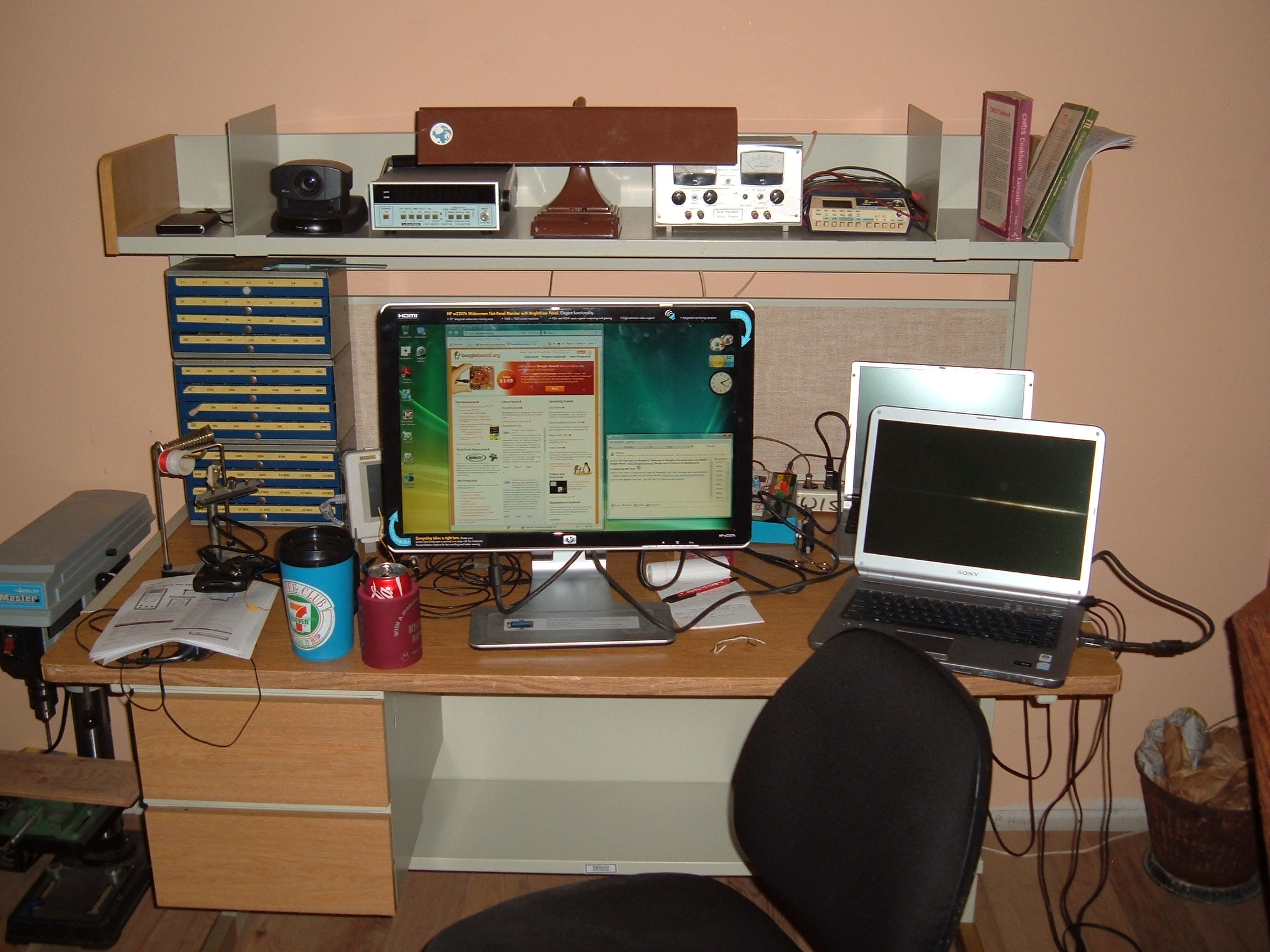

Finished monitor with video on Project workbench.
